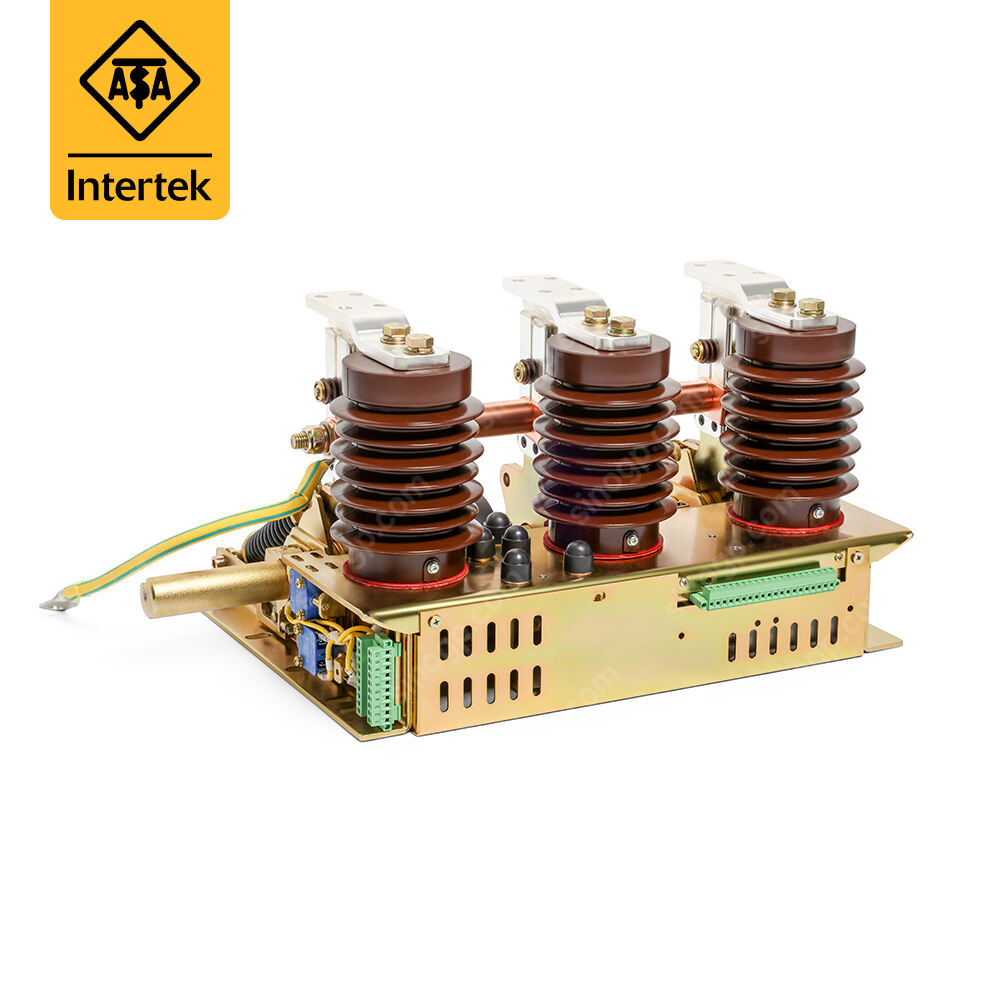

Motorized Earthing Switch GPJN15-12/D31.5-150(R)
GPJN15-12/D31.5 series indoor high voltage motorized earthing switch (short as: motorized earthing switch) is designed for the intelligent switchgear requirement of the electric system. It is suit for 3~12kV, 3 phase, AC 50 (60) Hz power system and kinds of high voltage switchgears. It is applicable for high voltage switchgear arrangement as the earthing protection when maintenance. The products’ performance meet GB1985-2004 High Voltage AC Disconnector and Earthing Switch and the requirements of standard as well as IEC62271-102:2002.
- Overview
- Recommended Products
GPJN15-12/D31.5 series indoor high voltage motorized earthing switch (short as: motorized earthing switch) is designed for the intelligent switchgear requirement of the electric system. It is suit for 3~12kV, 3 phase, AC 50 (60) Hz power system and kinds of high voltage switchgears. It is applicable for high voltage switchgear arrangement as the earthing protection when maintenance. The products’ performance meet GB1985-2004 High Voltage AC Disconnector and Earthing Switch and the requirements of standard as well as IEC62271-102:2002.
Earthing switch structure is simple and compact, light weight, flexible operation, easy installation, dynamic thermal stability, and a reliable electric operation, keep the original interlocks in catching rabbits switchgear chain constant, has been a national patent.
| Rated voltage | 12kV |
| Rated short-time withstand current | 31.5kA |
| Rated short-circuit duration | 4s |
| Rated short-circuit close current | 80kA |
| Rated peak withstand current | 80kA |
| Phase distance | 150mm |
| Certificate | ASTA, KEMA, CE |
| Compliance | Meets international safety standards such as ISO, IEEE |
Altitude sea level not exceeding 1000m
Ambient air temperature: +45℃, -25℃
Seismic intensity not exceeding 8 degree
Related humidity daily average value not more than 95%, monthly average not more than 90%
Pollution class: II
Special condition: Please specify when ordering.
