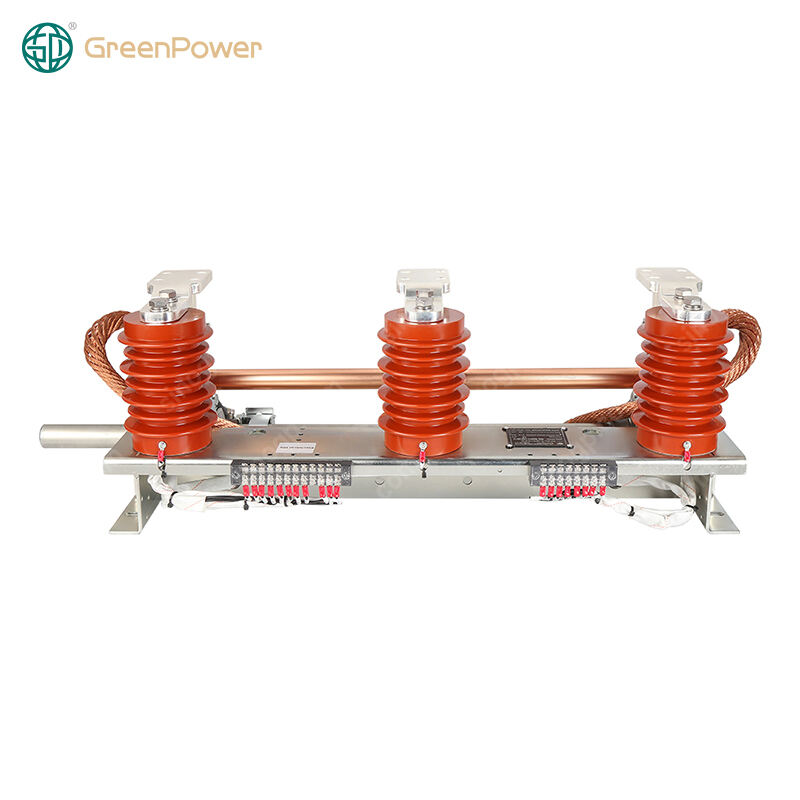

Earthing Switch GPJN15-12/31.5-275(R)
GPJN15-12(7.2)/31.5 type indoor high voltage earthing switch is the assembly type products, its performance meet GB1985-2004 High Voltage AC Disconnector and Earthing Switch and the requirements of standard IEC62271-102:2002. The products suit for power system with 3.6kV-12kV, 3 phase, AC, 50(60)Hz. It has capacity of short-circuit close to protect the electrical equipment from damage, applicable for high voltage switchgear arrangement as the earthing protection when do maintenance.
- Overview
- Recommended Products
GPJN15-12(7.2)/31.5 type indoor high voltage earthing switch is the assembly type products, its performance meet GB1985-2004 High Voltage AC Disconnector and Earthing Switch and the requirements of standard IEC62271-102:2002. The products suit for power system with 3.6kV-12kV, 3 phase, AC, 50(60)Hz. It has capacity of short-circuit close to protect the electrical equipment from damage, applicable for high voltage switchgear arrangement as the earthing protection when do maintenance.
| Rated voltage | 12kV |
| Rated short-time withstand current | 31.5kA |
| Rated short-circuit duration | 4s |
| Rated short-circuit close current | 80kA |
| Rated peak withstand current | 80kA |

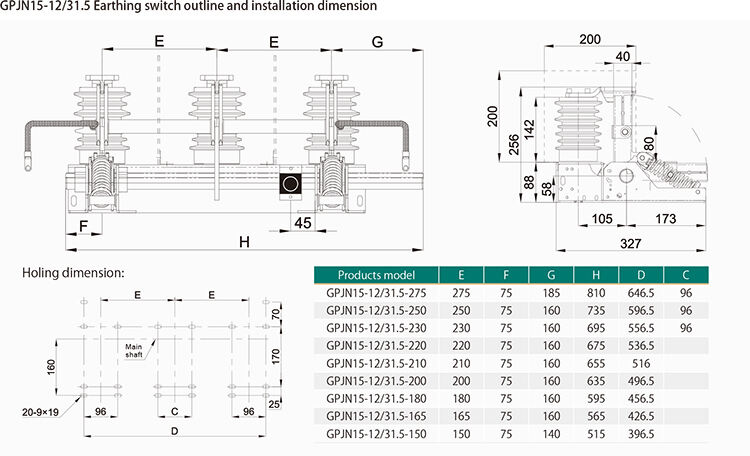

| Phase distance | 275mm |
| Mechanical endurance | 2000 times |
| Certificate | ASTA, KEMA, CE |
| Compliance | Meets international safety standards such as ISO, IEEE |
Altitude sea level not exceeding 1000m
Ambient air temperature: +45℃, -25℃
Seismic intensity not exceeding 8 degree
Related humidity daily average value not more than 95%, monthly average not more than 90%
Pollution class: II
Special condition: Please specify when ordering.
GreenPower provides professional smart switchgear solutions. Contact us immediately for free consultation and quotation. Our professional team will provide you with full service and technical support throughout the process.
