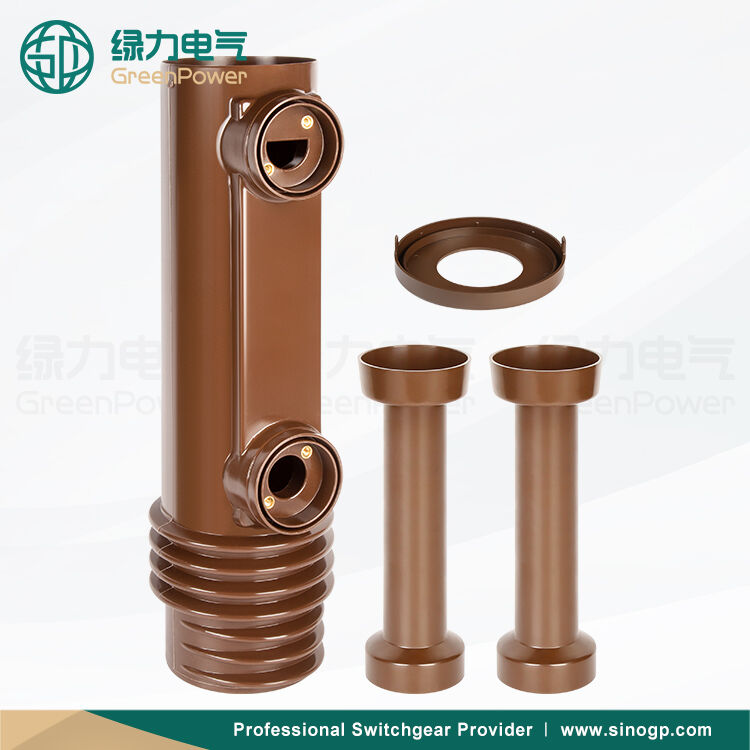

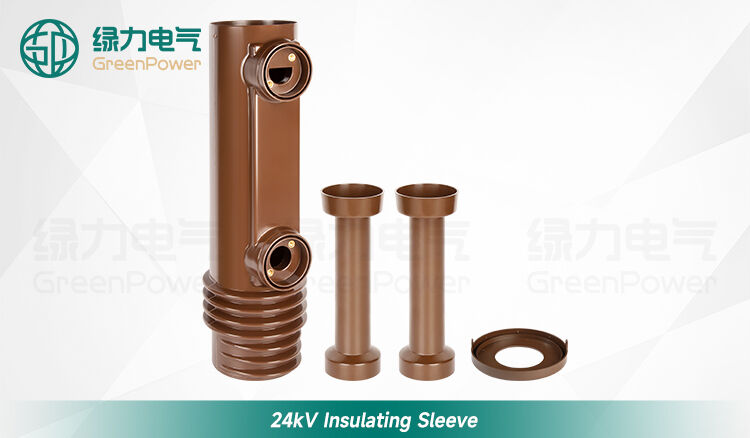

GPN24/593 24kV 1250A Insulating sleeve
The 24kV Insulating Sleeve is a primary insulation and mechanical support component designed for use in 24kV-class medium-voltage switchgear systems. It is used for a variety of applications where cable/busbar insulation and separation from live parts is needed. This product is typically installed in feeder compartments, vacuum circuit breaker compartments, and main distribution systems to provide reliable insulation and protection.
- Overview
- Recommended Products
The 24kV Insulating Sleeve is a primary insulation and mechanical support component designed for use in 24kV-class medium-voltage switchgear systems. It is used for a variety of applications where cable/busbar insulation and separation from live parts is needed. This product is typically installed in feeder compartments, vacuum circuit breaker compartments, and main distribution systems to provide reliable insulation and protection.
Made from high-quality epoxy resin, the insulator offers excellent dielectric strength, mechanical rigidity, and long-term durability in harsh electrical environments. The threaded insert design ensures stable installation, making it suitable for new installations and retrofit projects.
Versatile Insulation for Cable and Busbar Entry
Suitable for providing insulation in various applications, including feeder compartments and vacuum circuit breaker compartments, where electrical separation and insulation are critical.
High-Quality Epoxy Resin Construction
Offers excellent dielectric strength, mechanical strength, and resistance to environmental stress, ensuring long-term reliability.
Threaded Insert for Easy and Secure Installation
Designed with M10 or M12 threaded inserts, ensuring secure installation and minimizing deviations during assembly.
Flange Mounting for Precise Positioning
Flange base with pre-drilled holes ensures precise positioning inside the switchgear compartments.
Durable and Weather-Resistant
Resistant to UV radiation, temperature fluctuations, and moisture, ensuring longevity and performance in harsh indoor and outdoor environments.
Easy to Replace and Maintain
Designed for fast and easy replacement during routine maintenance, improving operational uptime and reducing downtime.
Rated voltage: 24kV
Material: Epoxy resin
Manufacturing process: APG (Automatic Pressure Gelation)
Applicable standard: IEC
Certificate: CE
● Feeder Compartments and Circuit Breaker Compartments in 24kV switchgear
● Cable and Busbar Interface Insulation in medium-voltage distribution systems
● Insulation and Separation for live parts and enclosures in medium-voltage switchgear
● OEM, Retrofit, and Replacement Projects in medium-voltage applications
