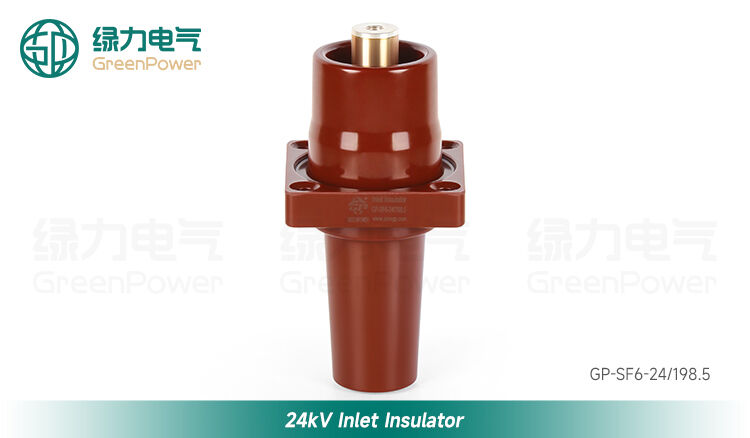

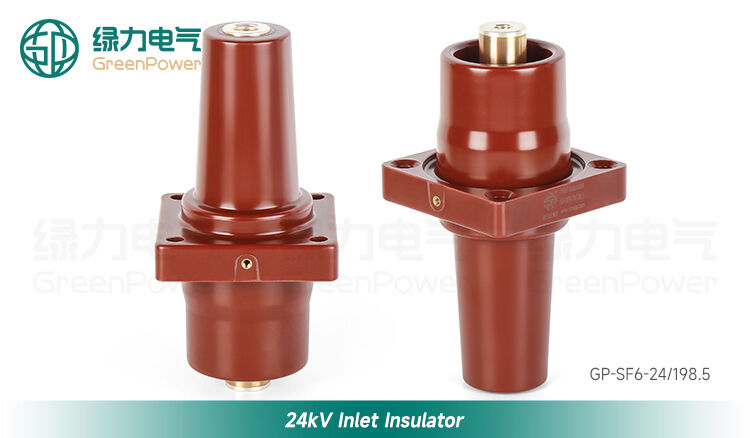

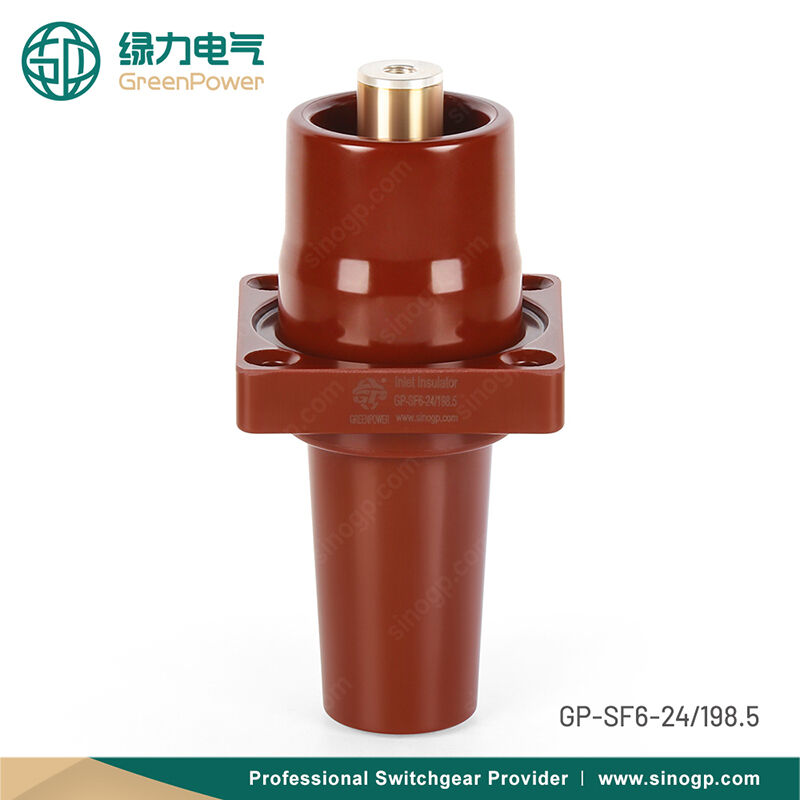

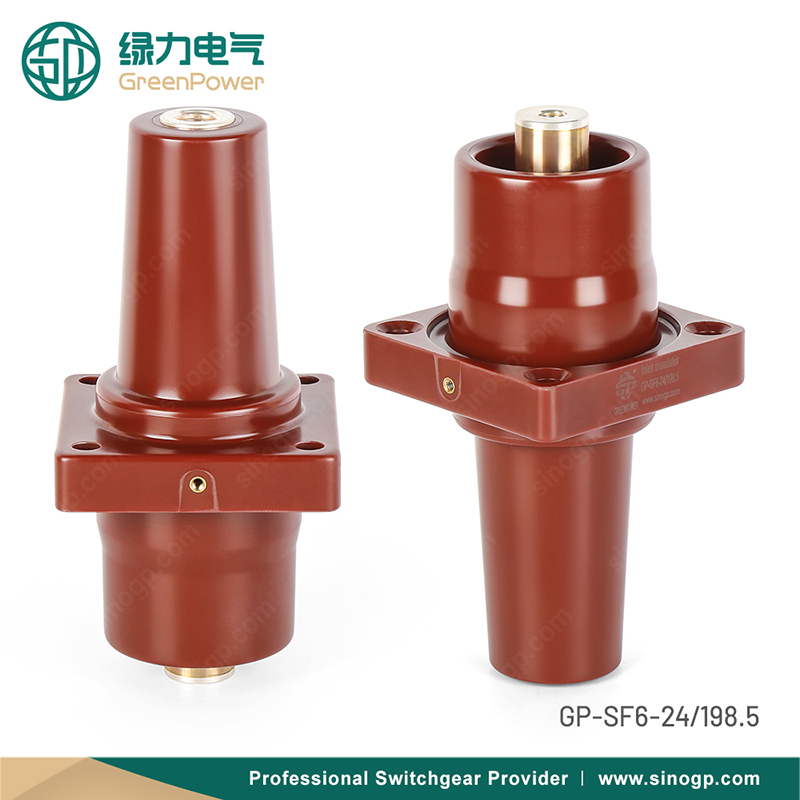

GP-SF6-24/198.5 24kV Inlet insulator
The SF6-24/198.5 24kV Inlet Insulator is a primary insulation component designed for 24kV-class SF6 gas-insulated load break switchgear / RMU and medium-voltage switchgear. It provides a secure insulated interface for incoming cable/busbar connection, ensuring stable dielectric performance and reliable mechanical support at the panel inlet area.
- Overview
- Recommended Products
The SF6-24/198.5 24kV Inlet Insulator is a primary insulation component designed for 24kV-class SF6 gas-insulated load break switchgear / RMU and medium-voltage switchgear. It provides a secure insulated interface for incoming cable/busbar connection, ensuring stable dielectric performance and reliable mechanical support at the panel inlet area.
Manufactured with high-strength epoxy resin and integrated metal inserts/terminals (as required by design), this inlet insulator supports consistent installation, reduces assembly deviation, and helps maintain long-term insulation reliability in compact SF6 switchgear structures.
Designed for SF6 24kV Switchgear Inlet Interface
Optimized for compact SF6 panel structures to ensure safe insulation at the incoming connection zone.
High-Strength Epoxy Resin Body
Excellent mechanical rigidity and dimensional stability for reliable long-term service in MV switchgear.
Stable Dielectric Performance
Helps reduce electric stress concentration and supports consistent insulation reliability at the primary interface.
Integrated Metal Inserts / Terminals (By Design)
Provides secure fastening and reliable electrical interface, improving repeatability during installation and maintenance.

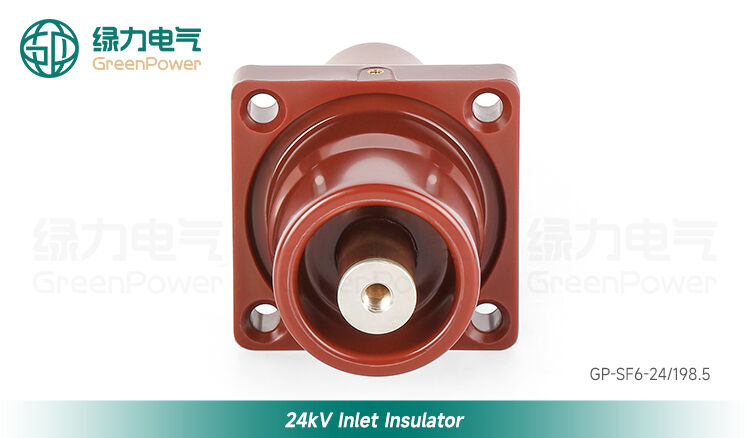

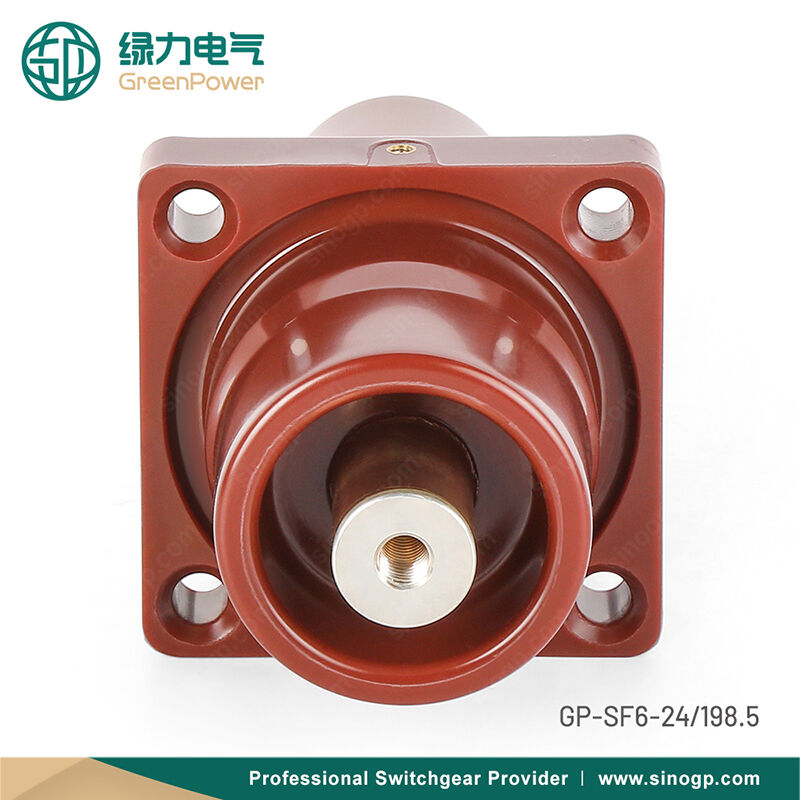

Flange Mounting for Accurate Positioning
Flange base with fixing holes enables precise assembly and stable fixation inside the switchgear compartment.
Service-Friendly Replacement
Suitable for spare parts supply, maintenance replacement, and retrofit projects in SF6 RMU/LBS systems.

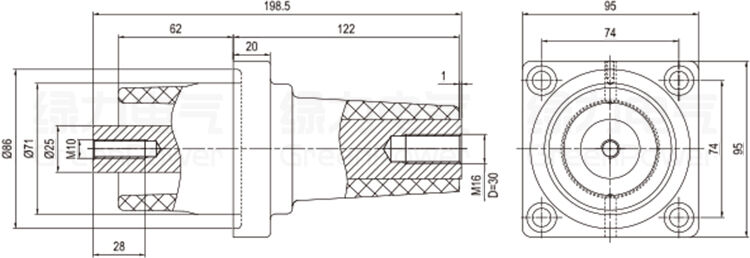

Customization by Drawing
Dimensions, insert specs, marking, and packaging can be supplied based on drawings for OEM and retrofit requirements.
Rated voltage: 24kV
Material: Epoxy resin
Manufacturing process: APG (Automatic Pressure Gelation)
Applicable standard: IEC
Certificate: CE
● 24kV SF6 gas-insulated RMU / LBS panels (incoming cable compartment)
● 24kV SF6 load break switch switchgear primary inlet insulation interface
● Medium-voltage distribution switchgear requiring compact inlet insulation parts
● OEM production, spare parts, retrofit and replacement for SF6-24 systems
