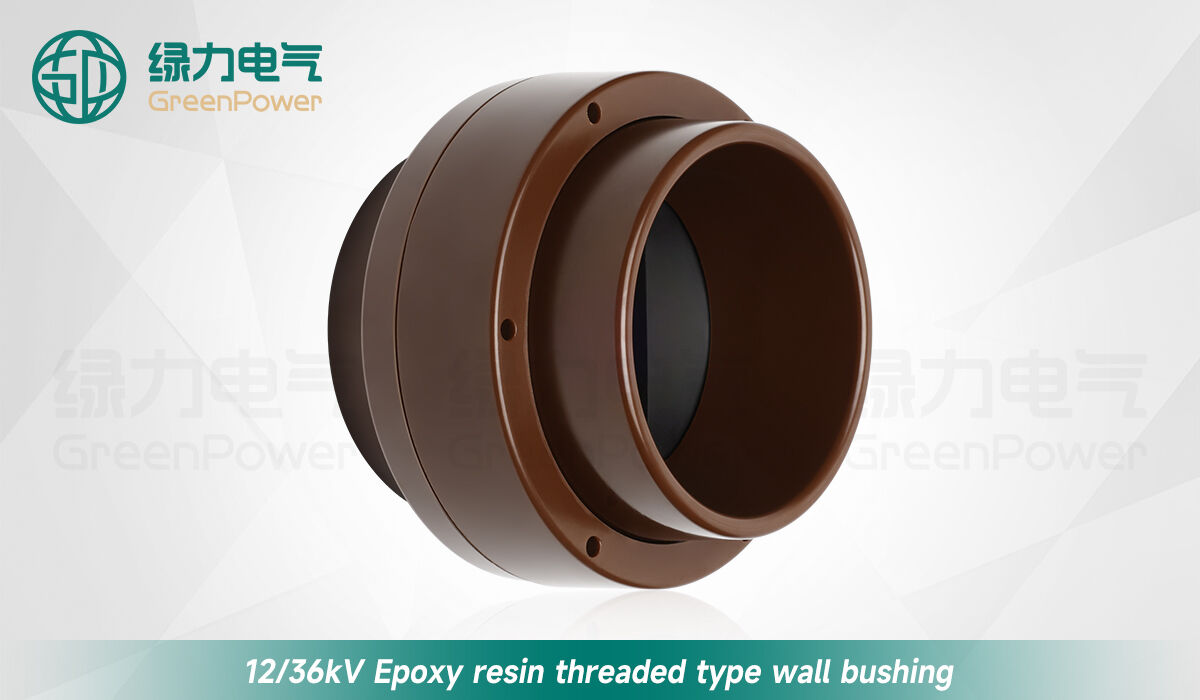

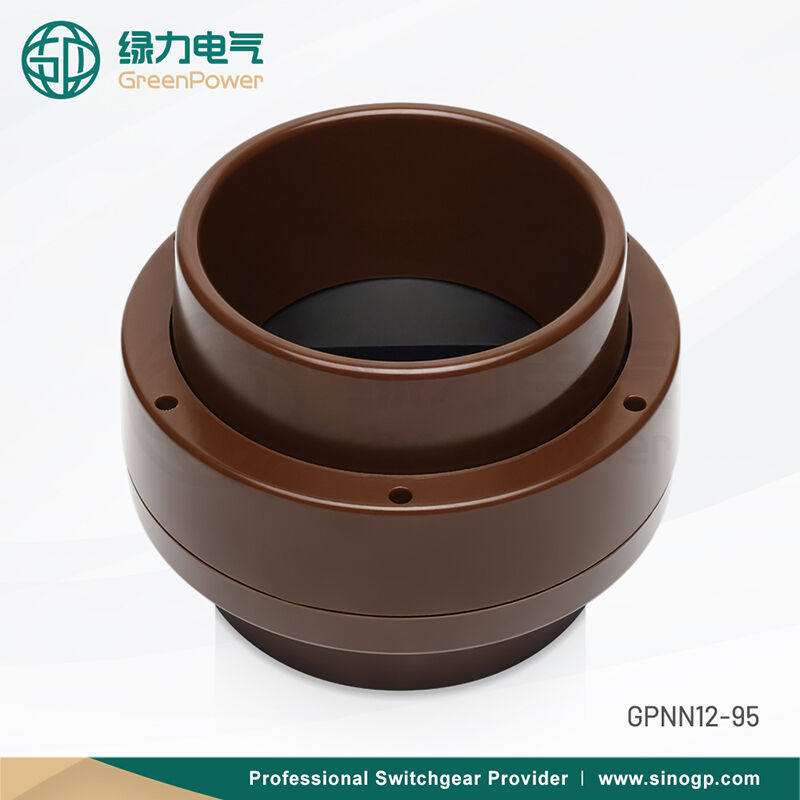

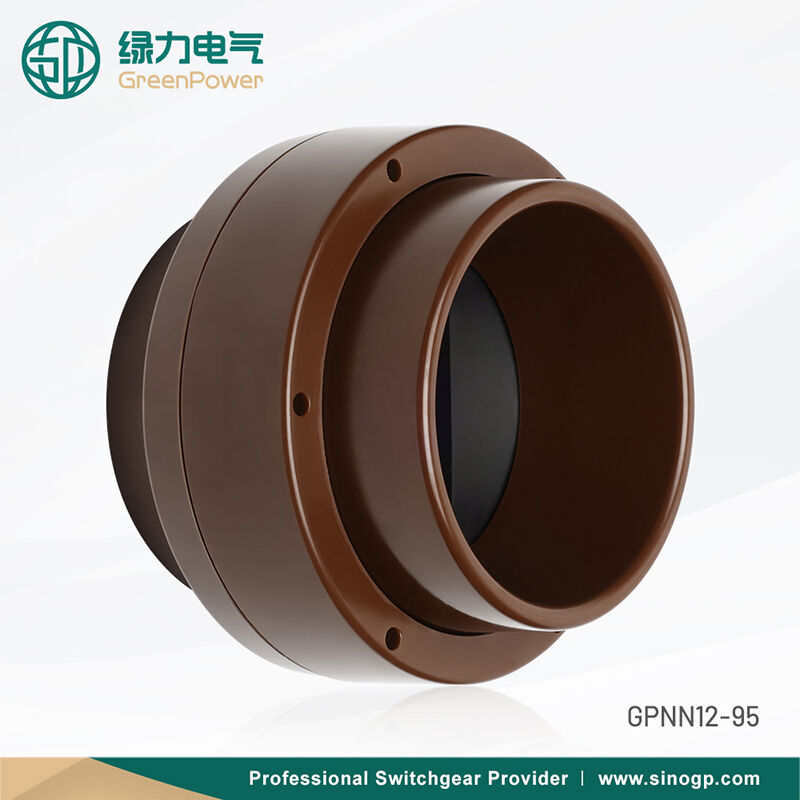

GPNN Series 12~40.5kV Threaded Type Wall bushing
The GPNN Series Epoxy Resin Threaded Type Wall Bushing is designed for use in 12kV and 40.5kV high-voltage power systems, providing reliable cable penetration through walls or barriers while maintaining excellent electrical insulation and mechanical support. Made from high-quality epoxy resin, this bushing ensures long-lasting performance, superior durability, and safety in a wide range of applications, including substations, switchgear, and other electrical systems. The threaded connection design ensures secure installation and a tight seal.
- Overview
- Recommended Products
The GPNN Series Epoxy Resin Threaded Type Wall Bushing is designed for use in 12kV and 40.5kV high-voltage power systems, providing reliable cable penetration through walls or barriers while maintaining excellent electrical insulation and mechanical support. Made from high-quality epoxy resin, this bushing ensures long-lasting performance, superior durability, and safety in a wide range of applications, including substations, switchgear, and other electrical systems. The threaded connection design ensures secure installation and a tight seal.
● Reliable High Voltage Insulation: Rated for 12kV and 40.5kV applications, this wall bushing provides reliable electrical insulation for power distribution systems.
● Durable Epoxy Resin Construction: Made from high-quality epoxy resin, offering excellent resistance to UV, aging, and harsh environmental conditions.

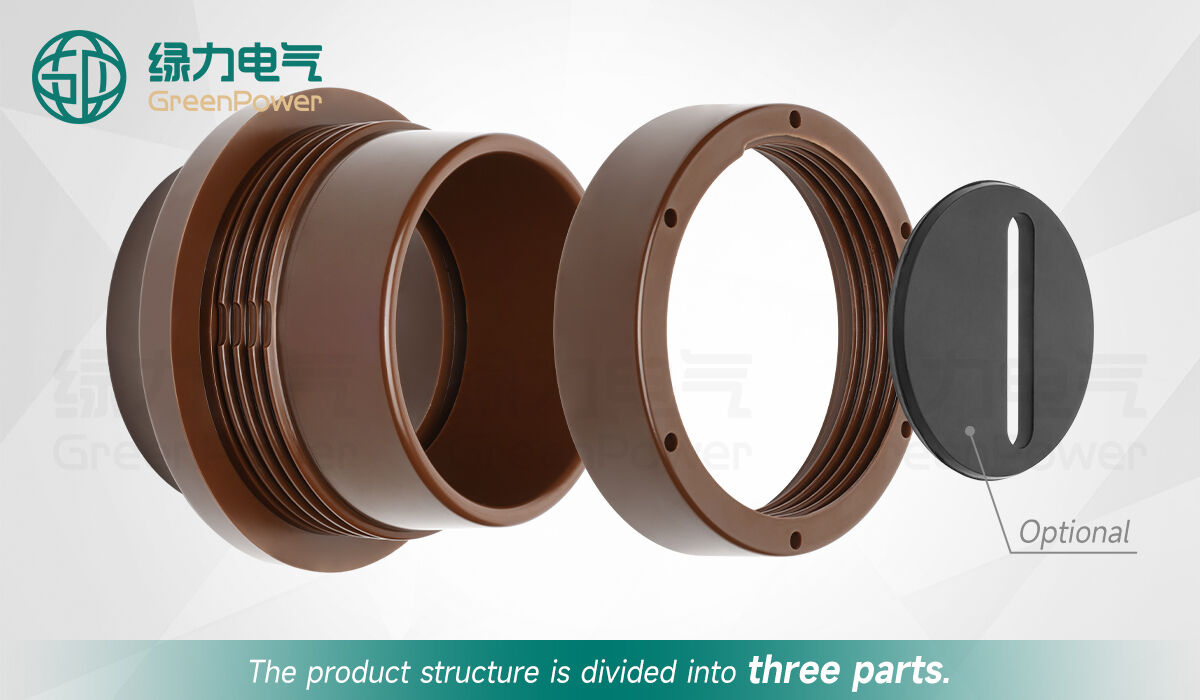

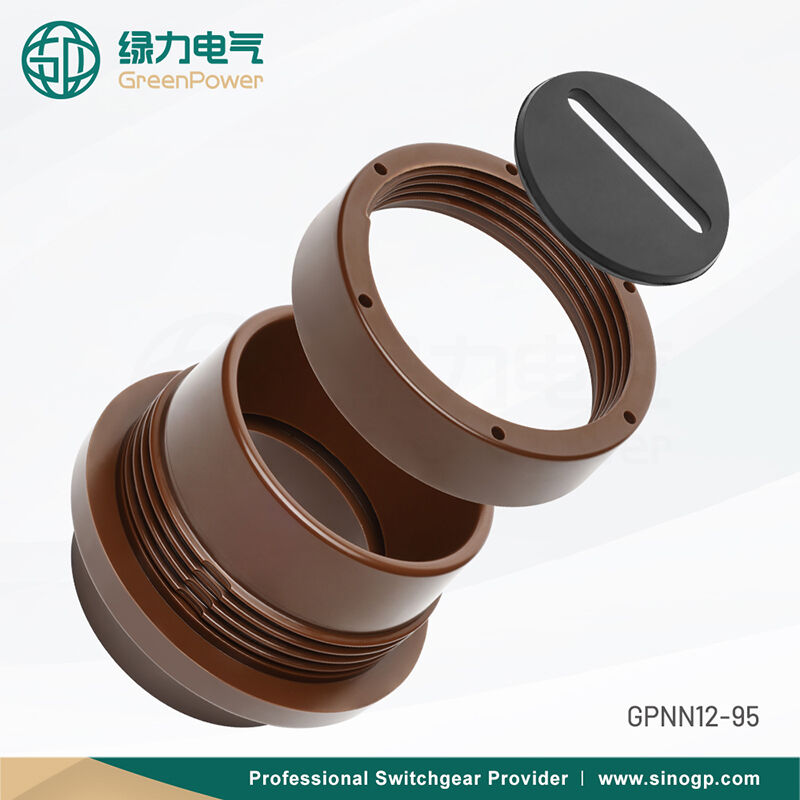

● Threaded Type Connection for Secure Installation: Features a threaded design, allowing for easy and secure installation, ensuring tight seals and protection from external environmental factors.
● Versatile Size Range: Available in various sizes, suitable for different cable types and applications, offering flexibility for different installation needs.
● Compact and Robust Design: Compact yet strong design to withstand mechanical stress and harsh conditions, ensuring long-term reliability in both indoor and outdoor environments.
● Enhanced Safety and Reliability: Provides robust insulation, reducing the risk of electrical faults and ensuring a safer operational environment.
Rated voltage: 12kV
Material: Epoxy resin
Creepage Distance: 120mm (12kV), 230mm (40.5kV)

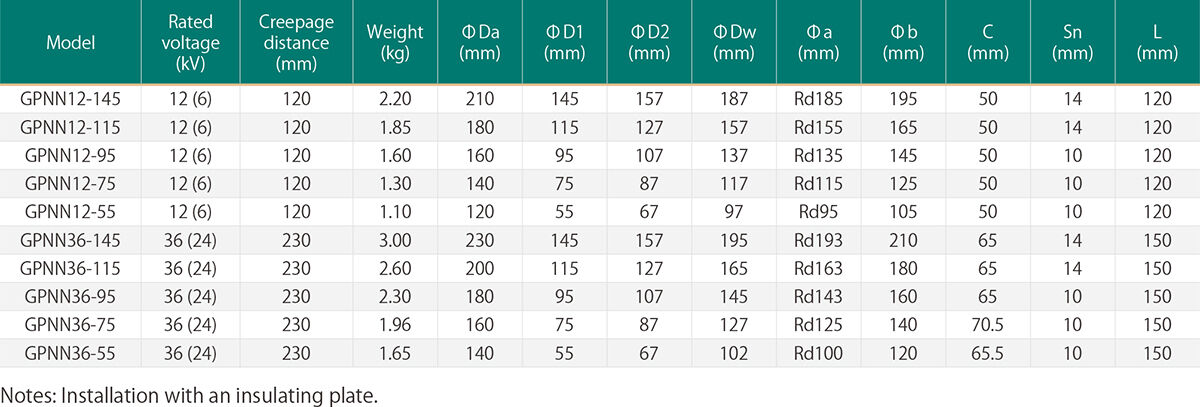

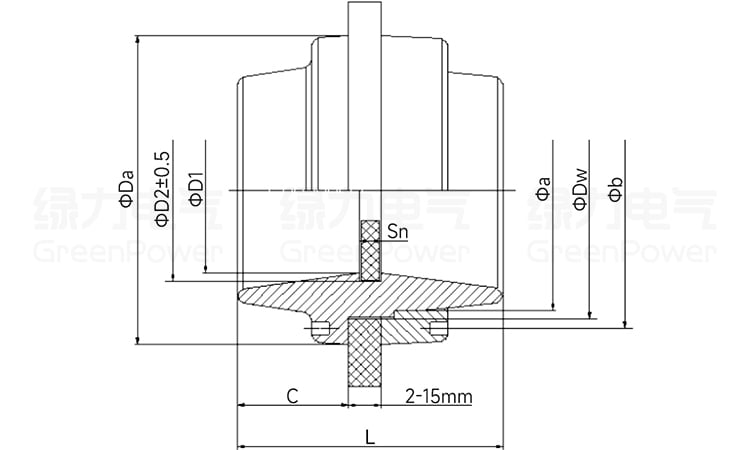

Dimensions: See model specifications below for exact dimensions
Manufacturing process: APG (Automatic Pressure Gelation)
Applicable standard: IEC
Certificate: CE
● Substations & High-Voltage Switchgear: Ideal for safe cable penetration in high-voltage substations and electrical switchgear.
● Power Distribution Networks: Suitable for use in transmission and distribution systems, offering reliable insulation for cable entries.
● Industrial Electrical Systems: Ideal for industrial plants and factories requiring high-voltage insulation and cable sealing.
● Enhanced Safety: Provides reliable insulation, reducing the risk of electrical faults.
● Long Service Life: The high-quality materials ensure durability in harsh environmental conditions.
● Cost-Effective: Simple installation with low maintenance costs, offering excellent value for power distribution systems.
